FAR-EAST QUARTZ MOVEMENTS
Very cost effective: It saves time and money - you can re-use the original hands.

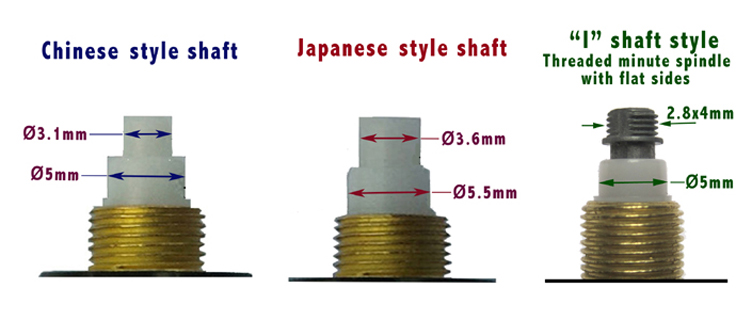

Movements identification chart
Please note:
A) It is advisable to have in stock some spare seconds-hands/caps, as sometimes the original one may not fit
B) If the original center movement-holding nut is different from the one supplied (i.e. looks similar to the European one),
it is advisable to re-use the original one, as it alters the effective length of the shaft - It will fit
C) Please enquire about the available hands, I have many types and lengths in stock

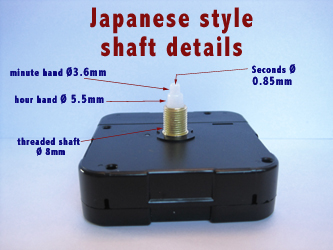

Japanese-style push-fit movements
JAPANESE-STYLE QUARTZ MOVEMENTS (i.e. for push-fit hands, Ø 5.5mm & 3.6mm) All supplied with rubber washer, metal washer and exagonal nut |
||
| 9mm snap-fit - Standard Mechanism | £3.25 |  |
| 9mm snap-fit - Silent | £3.50 | |
| 12.5mm - Silent | £3.50 | |
| 13mm shaft - Standard | £2.99 |
|
| 14.5mm - Silent | £3.50 | |
| 15mm shaft - Standard | £2.99 |
|
| 17mm shaft - Standard | £2.99 |
|
| 17mm shaft - High Torque | £3.50 |
|
| 20mm shaft - Standard Mechanism | £2.99 |
|
| 20mm shaft - High Torque | £3.50 |
|
| 22mm - High Torque | £3.50 | |
| 28mm shaft - High Torque | £3.50 |
|
| 31mm Shaft - standard | £3.25 | |
| 31mm shaft - High torque | out of stock |
|

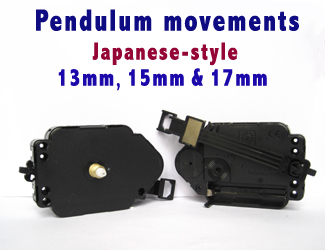

| JAPANESE-STYLE PENDULUM MOVEMENTS | ||
| 13mm - pendulum movement | £3.50 |
|
| 15mm - pendulum movement | £3.50 |
|
| 17mm - pendulum movement | £3.50 |
|
| ACCESSORIES FOR JAPANESE-STYLE MOVEMENTS | ||
| I have many hands for this model - Please inquire | ||
| RED seconds-hand, 90mm long | £0.30 |
|
| BLACK seconds-hand, 90mm long | £0.30 |
|
| CAP - (No seconds-hand) | £0.30 |
|
| Extra rubber washers | £0.30 |
|
| Hanging hook | £0.45 |
|
|
||

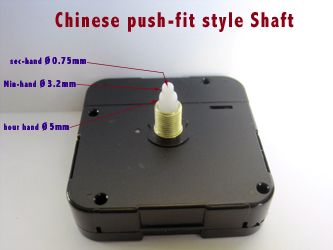

Chinese-style push-fit movements
CHINESE-STYLE QUARTZ MOVEMENTS (i.e. for push-fit hands, Ø 5mm & 3.1mm) All supplied with rubber washer, metal washer and exagonal nut |
||
| 9mm snap-fit - Standard mechanism | £3.25 | |
| 9mm snap-fit - Silent | £3.50 | |
| 11mm shaft - standard | £2.99 |
|
| 12.5mm Shaft - Silent | £3.50 | |
| 13mm shaft -standard | £2.99 |
|
| 14.5mm snap-fit - Silent | £3.50 | |
| 15mm shaft - standard | £2.99 |
|
| 17mm shaft - Standard | £2.99 |
|
| 17mm shaft - High Torque | £3.50 |
|
| 20mm shaft - Standard mechanism | £2.99 | |
| 20mm shaft - Silent | £3.50 | |
| 23mm shaft - High-torque | £3.50 | |

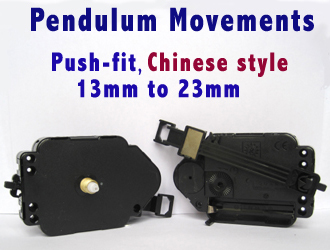

| CHINESE-STYLE PENDULUM MOVEMENTS | ||
| 13mm - pendulum movement | £3.75 | |
| 15mm - pendulum movement | £3.75 | |
| 17mm - pendulum movement | £3.75 |
|
| 23mm - pendulum movement | £3.75 | |
| ACCESSORIES FOR CHINESE-STYLE MOVEMENTS | ||
| I have hands for this model - Please inquire | ||
| RED seconds-hand, 90mm long | £0.30 | |
| RED seconds-hand, 63mm long (finer) | £0.30 | |
| BLACK seconds-hand, 90mm long | £0.30 | |
| CAP - (No seconds-hand) | £0.30 | |
| Extra rubber washers | £0.30 | |
| Hanging Hook | £0.45 | |
|
|
||
Chinese-style "I" shaft movements
CHINESE-STYLE "I" SHAFT MOVEMENTS (Hands' fittings similar to UTS movements, but measuring 5mm and 4x2.8mm) All supplied with rubber washer, metal washer, exagonal center nut and minute-hand nut |
||
| 13mm shaft | £2.99 | |
| 15mm shaft | £2.99 |
|
| 17mm shaft | £2.99 |
|
| 17mm shaft - High Torque | £3.50 | |
| 17mm shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 20mm shaft | £2.99 | |
| 20mm shaft - High Torque | £3.50 | |
| 20mm shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 23mm Shaft - High Torque | £3.50 | |
| 23mm Shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 28mm Shaft - High Torque | £3.50 | |
| 28mm Shaft - High Torque, with minute-shaft "extension" | £3.99 | |
| 31mm Shaft - High Torque | £3.50 | |
| 31mm Shaft - High Torque, with minute shaft "extension" | out of stock | |

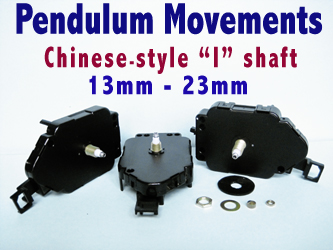

| CHINESE-STYLE "I" SHAFT PENDULUM MOVEMENTS | ||
| 13mm "I" shaft - pendulum movement | £3.75 | |
| 15mm "I" shaft - pendulum movement | £3.75 | |
| 17mm "I" shaft High-Torque pendulum movement | £3.99 | |
| 17mm "I" shaft High-Torque with minute-shaft extension | £4.50 | |
| 23mm "I" shaft High-Torque pendulum movement | £3.99 | |
| 23mm "I" shaft High-Torque with minute-shaft extension | £4.50 | |
|
ACCESSORIES FOR CHINESE-STYLE "I" SHAFT MOVEMENTS |
||
| I have many hands that fit this model - Please inquire | ||
| RED seconds-hand, 90mm long | £0.30 | |
| RED seconds-hand, 63mm (Finer) | £0.30 | |
| BLACK seconds-hand, 90mm long | £0.30 | |
| Closed nut - (No seconds-hand) | £0.30 | |
| Open nut - (For seconds-hand) | £0.20 |
|
| Extra rubber washers | £0.30 |
|
| Hanging Hook | £0.45 |
|
|
|
||
Pendulum Module
It converts any ordinary movement (56x56x16mm) into a pendulum clock.
It accepts European, Chinese, Japanese or US movements
Mainly used to make-up unusual sizes or high-torque pendulum mechanisms
| Pendulum Module | £2.99 |
|
